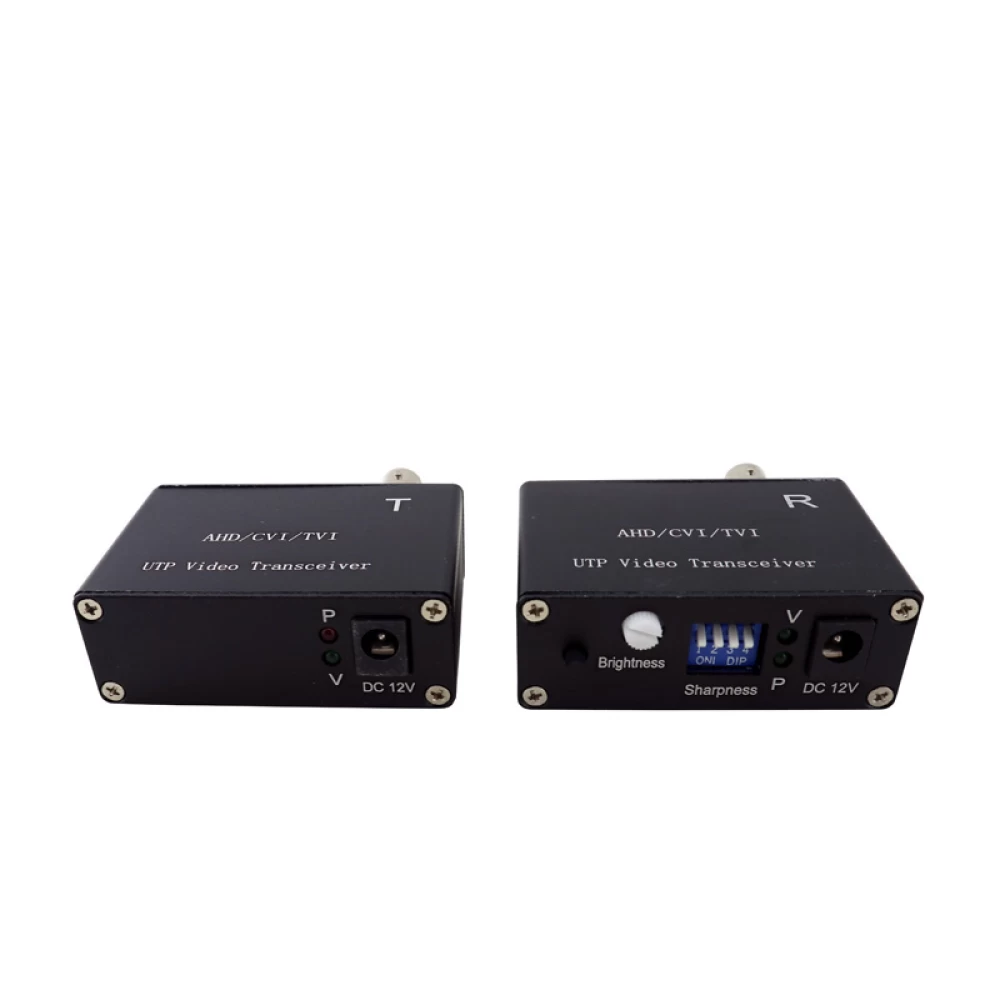

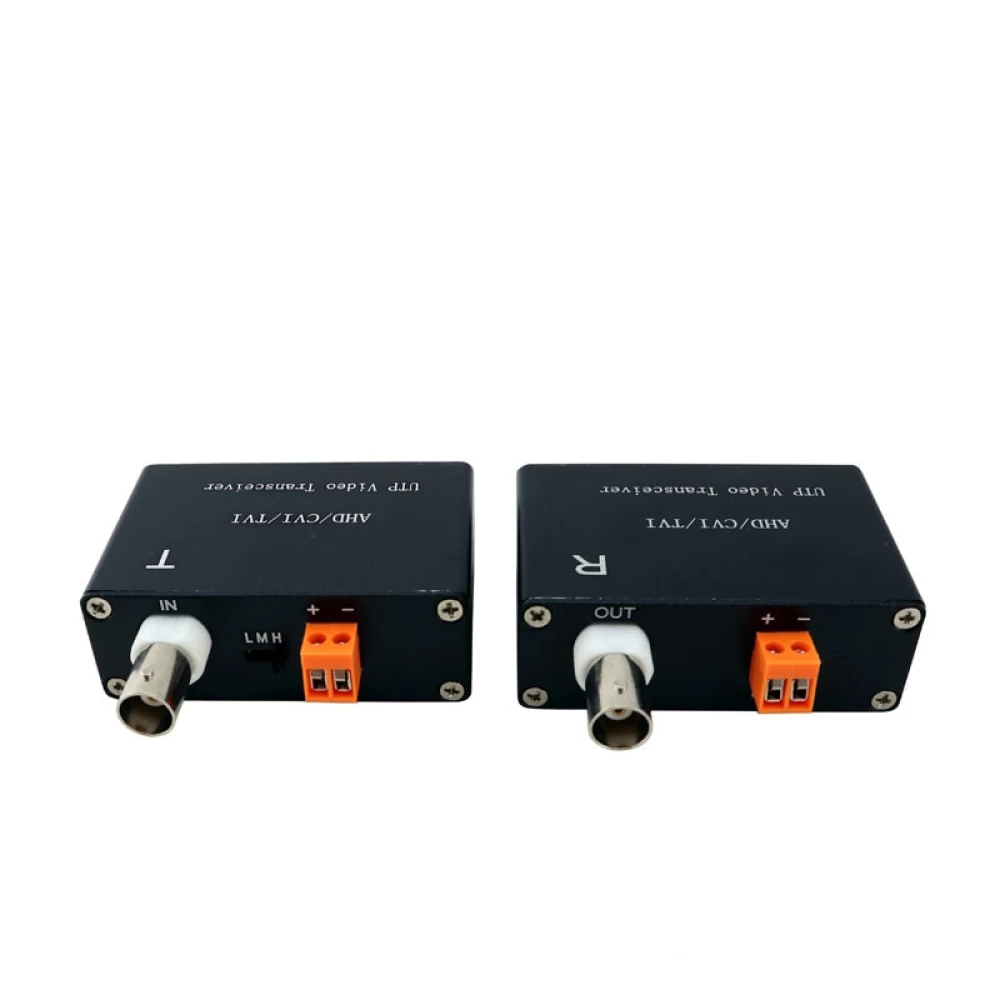

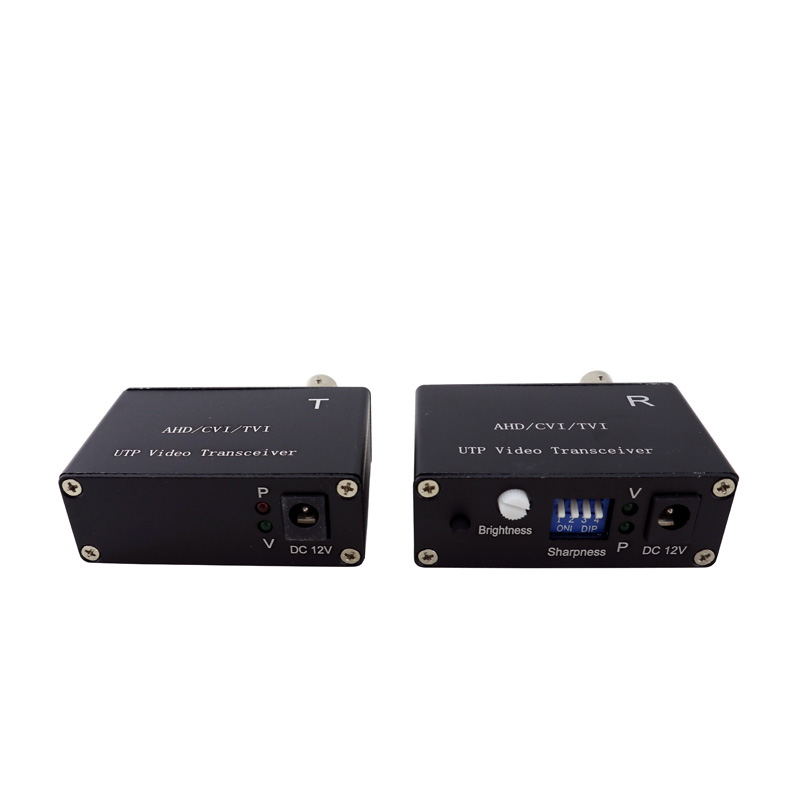

Video Balun ενεργό ζεύγος PS-HD120T/R

Video Balun ενεργό ζεύγος MAX 800m

ΔΕΝ ΠΕΡΙΕΧΕΙ ΤΡΟΦ/ΚΟ 12V/1A

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Supports: HD-AHD, HD-TVI, HD-CVI, CVB/ analog video transmission over UTP

760P/960p up to 800meters, 1080P/3MP/4MP/5MP up to 500meters

Power Supply: DC12V/0.5-1A

Balun Type: Passive

Video Transmitting Distance: HDCVI/ CVBS: Up to 600m for 720P

AHD: Up to 300m for 960H/1080P

HDTV: Up to 300m for 720P/ 1080P

Video Formats: NTSC, PAL, SECAM

Crosstalk & Noise Immunity: 60dB

Transient suppression protection: Yes

Frequency Response: DC to 8MHz can be adjusted according to the specific circumstances

Wire Type: Unshielded Cat-5 or above twisted pair wire

Impedance: BNC:75 ohms, Terminal: 100 ohms

Material: ABS engineering plastic

Working Temperature: -20o C - +65 o C

Functions: Built-in anti-surge , anti-thunder & anti-inference function

Small size, Easy to Use
