Access point 300 Mbit/s Power over Ethernet (PoE) Netis System WF2220 WLAN

Access point 300 Mbit/s Power over Ethernet (PoE) Netis System WF2220 WLAN

The netis 300Mbps Wireless N Access Point WF2220 provides long range, high performance wireless Internet access over large areas. It provides you multiple wireless modes including AP, Repeater, WDS, Multi-SSID, for flexible wireless network setup and deployment. Also, with the Turbo button, you may easily control the transmission power. Under the high power mode, you will enjoy much better network experience in large homes, multi-floor offices or warehouses.

2x5dBI DETACHABLE ANTENNAS

Wireless
Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Signal Rate Up to 300Mbps
Frequency Range 2.4-2.4835GHz
Transmit Power 23dBm(MAX)
Data Transfer Rates 802.11n:
40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
801.11g:
(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
802.11b:
(11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)
Wireless Modes AP, Repeater,WDS, Multi-SSID(VLAN)
Wireless Security 64/128-bit WEP,
WPA-PSK/WPA2-PSK (TKIP/AES)
SSID Broadcast Enable/Disable
Wireless MAC Filtering

Hardware
Standards IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
Interface 1 * 10/100Mbps Auto MDI/MDIX RJ45 LAN port, Passive PoE Supported
LED Indicators PWR, Turbo, WPS, LAN
(Turbo LED Status: Blue for Normal Power, Red for High Power)
Buttons Turbo, Default, WPS
Antenna 2* 5dBi Detachable Antenna, SMA Connector
Power Supply DC 12V/1A (Output)

Software
LAN DHCP Client, DHCP Server
Others Time Settings,Firmware Upgrade, Backup & Restore

Others
Certification FCC, CE
Environment Operating Temperature: 0?~40?
Storage Temperature: -40?~70?
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

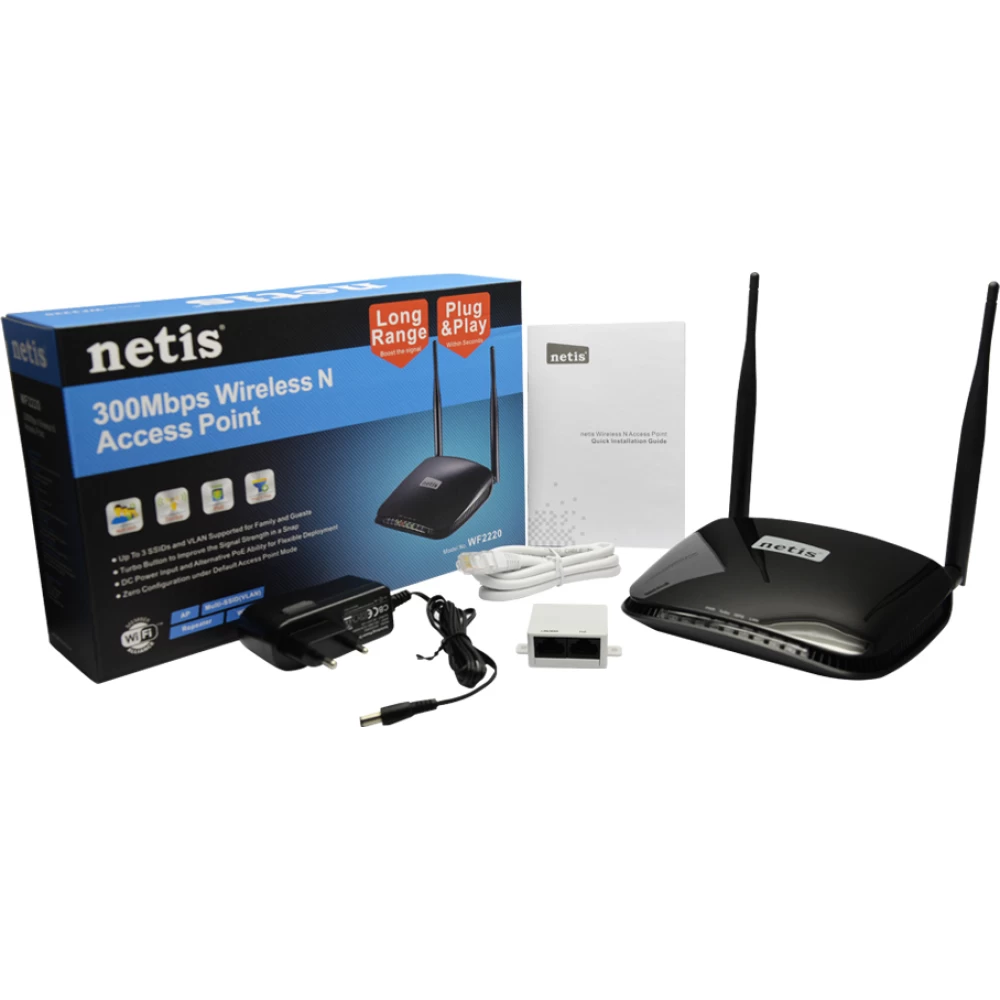

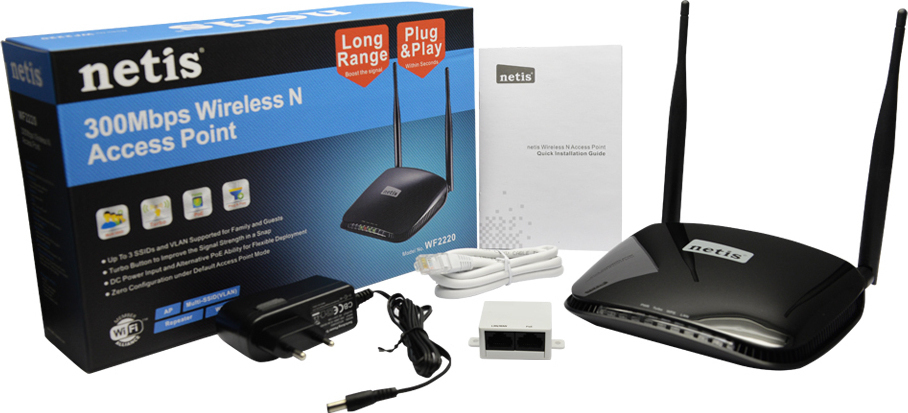

Package 1* WF2220
1* 12V/1A Power Adapter
1* PoE Power Injector
1* Ethernet Cable
1* Quick Installation Guide
