Διαγνωστικό αυτοκινήτου ψηφιακό OBD II V310

Διαγνωστικό αυτοκινήτου ψηφιακό OBD II

Product Description
LUCKYDIY V310 is a great upgrade from the more basic diagnostic Code Reader.
The major function of this scanner is detecting the Engine System, read and clear the error codes.
Once plugged into your vehicle's 16pin OBDII DLC, the unit will power up and prompt you to start your ignition.
If your vehicle has a Check Engine Light comes on, you can use V310 scanner to read the error codes, find out what the problem is, and perhaps fix it.

Supports OBD-II protocols:
1.SAE J1850 PWM (41.6 Kbaud)
2.SAE J1850 VPW (10.4 Kbaud)
3.ISO 9141-2 (5 baud init,10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud )
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)

Specifications:
Display: Backlist LCD,128*64 pixel display
Operating Temperature: 0～60℃ (32～140°F)
Storage Temperature: -20～70℃ (-41～58 °F)
External Power: 8.0 to 15.0 Volts provided via vehicle battery

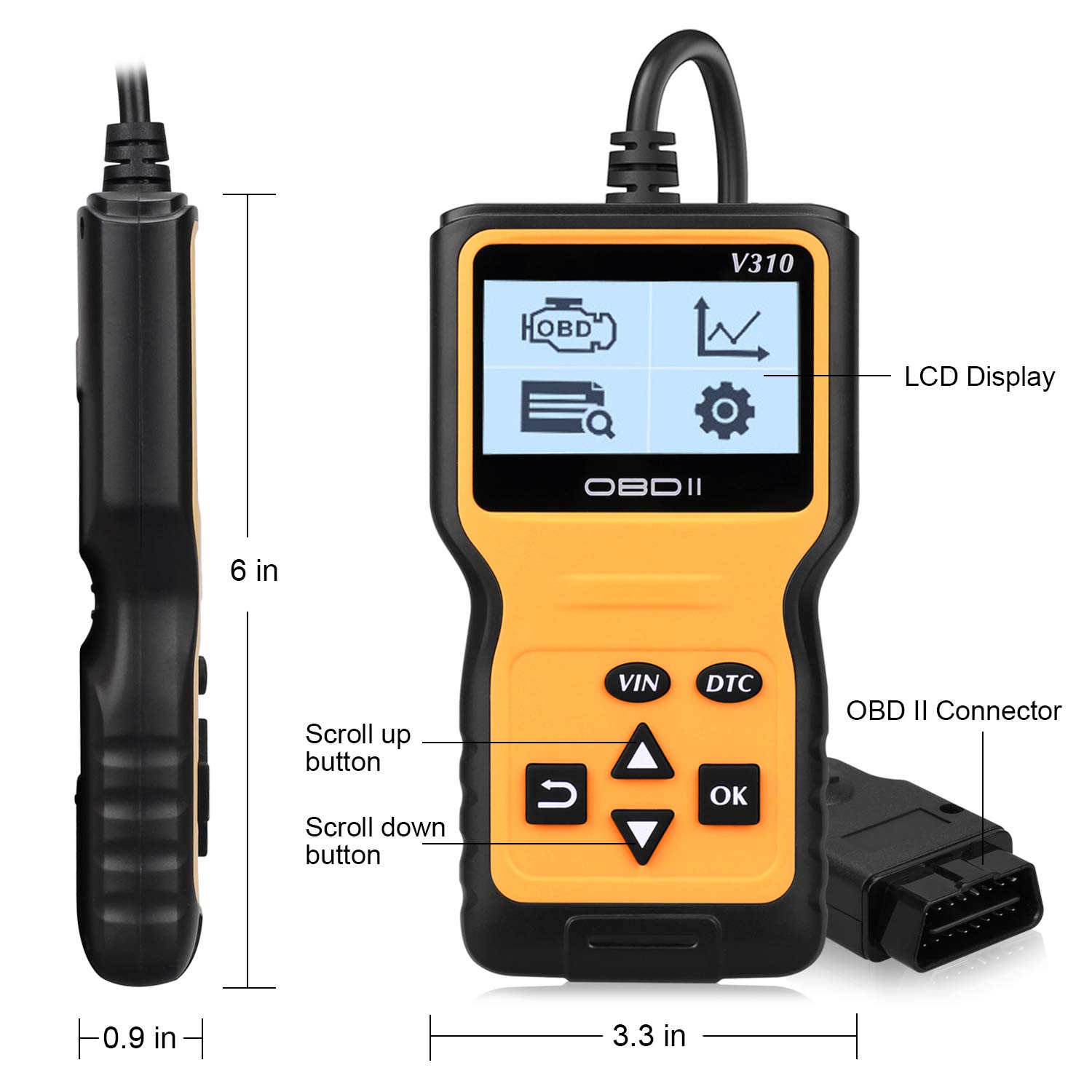

Dimensions: 155mm*85mm*25mm
Weight: NW:200g (0.44lb); GW:310g (0.68lb)
Package : 1 x OBD II Reader；1 x User's Manual
