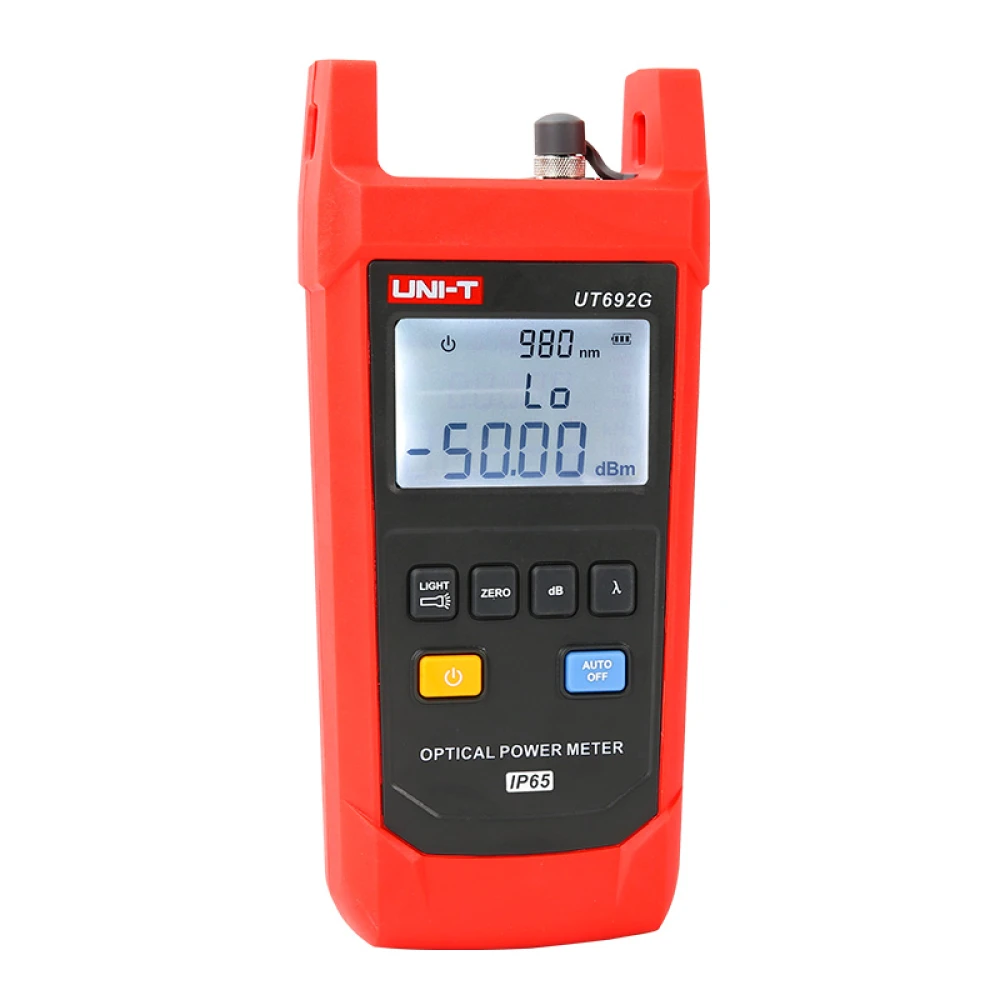

Όργανο Μέτρησης Ισχύος Οπτικών Ινών της Uni-T UT692G

Όργανο Μέτρησης Ισχύος Οπτικών Ινών της Uni-T

Operating temperature 0℃~40℃
ΔΙΑΣΤΑΣΕΙΣ 189mm x 87mm x 45mm
ΒΑΡΟΣ ΠΡΟΪΟΝΤΟΣ 286g
Power 1. 5V AA alkaline battery (3 pcs)
Auto power off 10 min
Low battery indication Low battery indication at about 3.3V, auto power off at about 3V
Wavelength Range (nm) 800-1700
2m drop test ΝΑΙ
Connector Universal connector FC/SC/ST ( FC as standard, SC and ST adapter as options)
Display Resolution Linear: 0.1%, logarithmic: 0.01dBm
Battery life 60 (h)
Uncertainty ±5%
Measurement Range (dBm) -50~+26
Calibrated Wavelength (nm) 850, 980, 1300, 1310, 1490, 1550, 1625, 1650
Detector Type InGaAs
